Packaging Machines Manufacturer in Amritsar

Complete packaging machinery from Amritsar, Punjab — corrugation (finger & fingerless), reel-to-sheet cutters, slotters, folder-gluers, flute laminators, mill roll stands, and 3 / 5 / 7 ply plants.

Packaging Machines

Double Profile Corrugation with Finger

View Details →
View specifications
Features
  • Two sets of flute rolls with multiple flute-roll configurations
  • Bearing-mounted high-speed construction
  • Reduced floor-space requirement
  • High-temperature grease lubrication
  • Steam or thermic-fluid heating
  • Motorized flute-roll changeover; hydraulic interchange on specified configuration
Technical Specifications
SizeMotor H.P.Steam Requirement kg/hrWeight Approx.Floor Space
42"9.02005.0 MT7' × 16'
52"11.53005.5 MT8.5' × 16'
62"11.53006.0 MT9.5' × 16'
72"14.04006.5 MT10' × 17'
82"16.54007.5 MT11' × 18'
Request Quote →

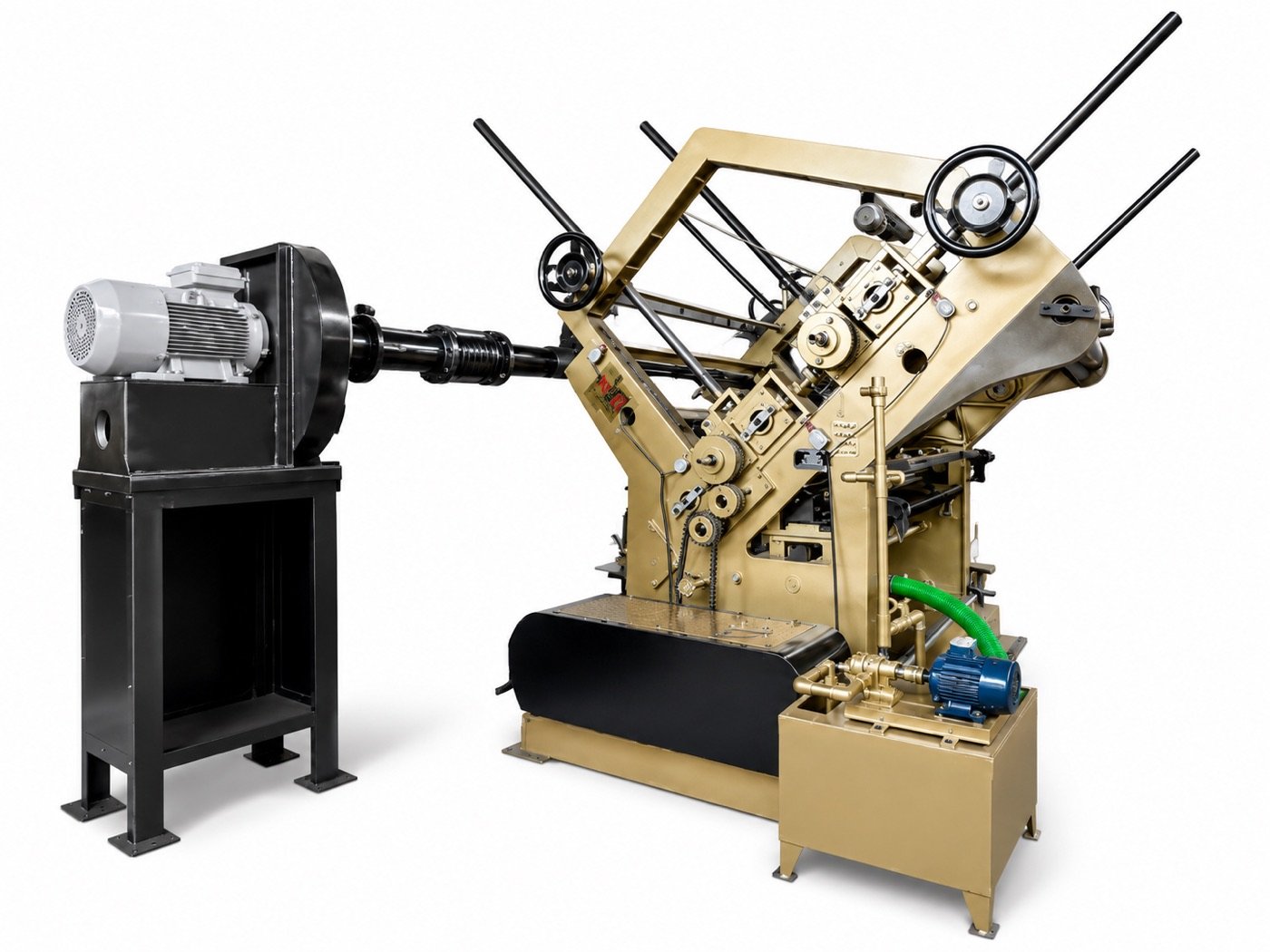

Double Profile Corrugation Fingerless

View specifications
Features
  • Two sets of flute rolls with multiple flute-roll configurations
  • Bearing-mounted high-speed construction
  • Reduced floor-space requirement
  • High-temperature grease lubrication
  • Steam or thermic-fluid heating
  • Motorized flute-roll changeover; hydraulic interchange on specified configuration
Technical Specifications
SizeMotor H.P.Steam Requirement kg/hrWeight Approx.Floor Space
42"9.02005.0 MT7' × 16'
52"11.53005.5 MT8.5' × 16'
62"11.53006.0 MT9.5' × 16'
72"14.04006.5 MT10' × 17'
82"16.54007.5 MT11' × 18'
Request Quote →

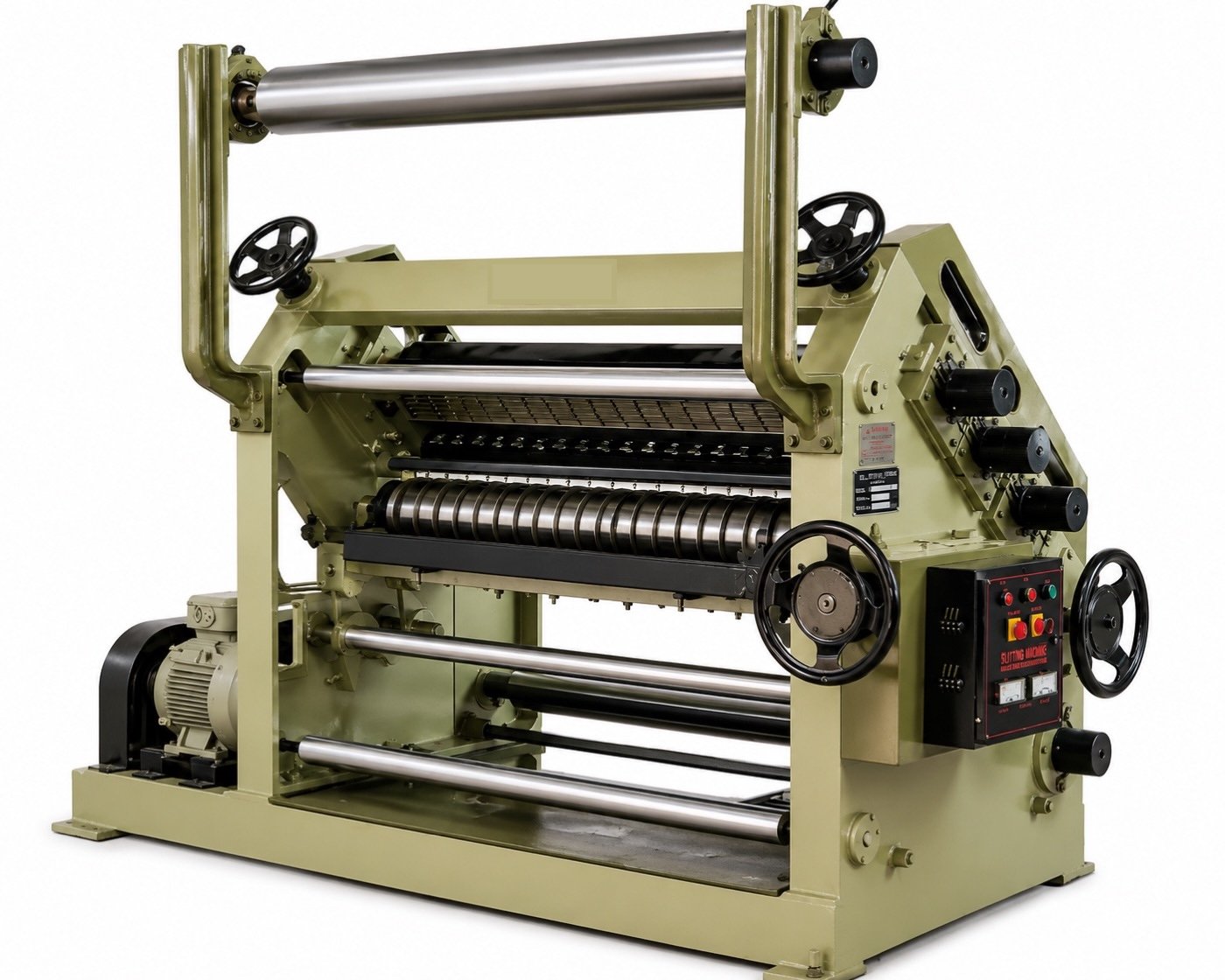

High Speed Corrugation Oblique Type with Finger

View specifications
Features
  • High-speed paper corrugation with precision flute rolls
  • Uniform impression
  • Hydraulic self-loading twin-shaft reel stand with two unwinding shafts
  • Electric heating for board lamination
  • Robust construction, simple operation, easy handling
Technical Specifications
SizeOutputPowerHeating LoadFloor SpaceWeight Approx.
42"120 ft.3 H.P.33 kW7' × 16'4.5 MT
52"120 ft.7 H.P.33 kW8' × 16'5.0 MT
62"120 ft.10 H.P.33 kW9' × 16'5.5 MT
72"120 ft.15 H.P.Steam10' × 16'6.0 MT
Request Quote →

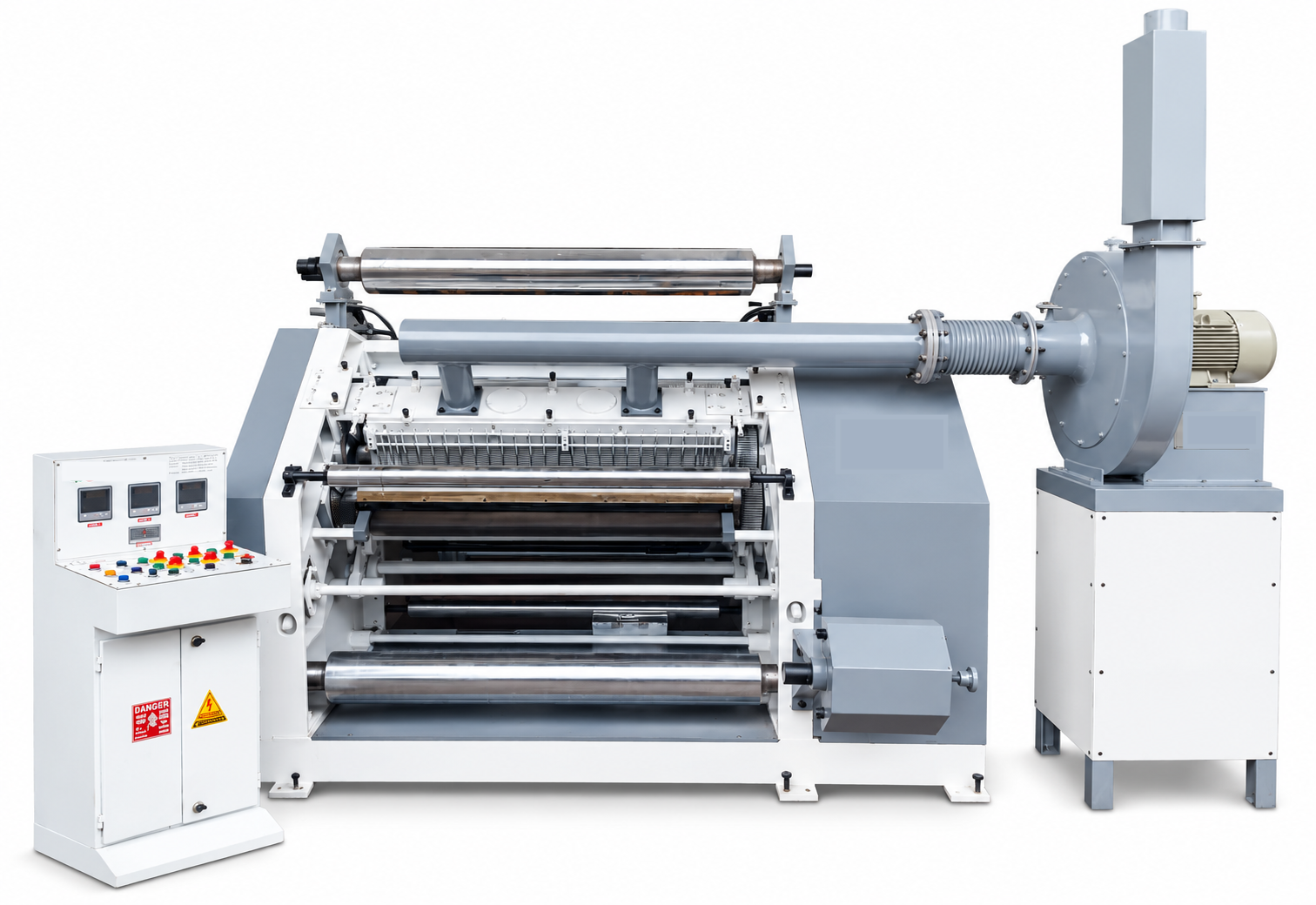

High Speed Corrugation Oblique Type Fingerless

View specifications
Features
  • Designed for single-face corrugated production
  • Fingerless corrugating system with high-speed operation
  • High-temperature grease lubrication — reduced leakage and contamination
  • Integral segments for thermic-fluid or steam heating
  • High-quality flute formation for improved board quality
  • Suitable for high-production applications
Technical Specifications
SizeMotor H.P.Blower H.P.Heating LoadPre-HeaterMaximum Speed
42"77.536 kW6 kW20–30 m/min
46"7.51039 kW6 kW20–30 m/min
52"7.51539 kW6 kW20–30 m/min
62"101542 kW8 kW20–30 m/min
Request Quote →

Reel To Sheet Cutting Machine (Gear Model with 23 Nos of Gears)

View Details →
View specifications
Features
  • High-speed reel-to-sheet cutting for corrugated board and plain paper
  • Cuts corrugated board without damaging flutes
  • Gear-driven cutting with accurate sheet-length cutting
  • Delivery conveyor and counting meter
  • Suitable for independent or integrated operation
  • Gear Model with 23 Nos of Gears
Technical Specifications
SizeCutting LengthSpeedCutting PrecisionPower
42"8"–110"200–250 m/min±1 mm2 H.P.
52"8"–110"200–250 m/min±1 mm2 H.P.
62"8"–110"200–250 m/min±1 mm3 H.P.
Request Quote →

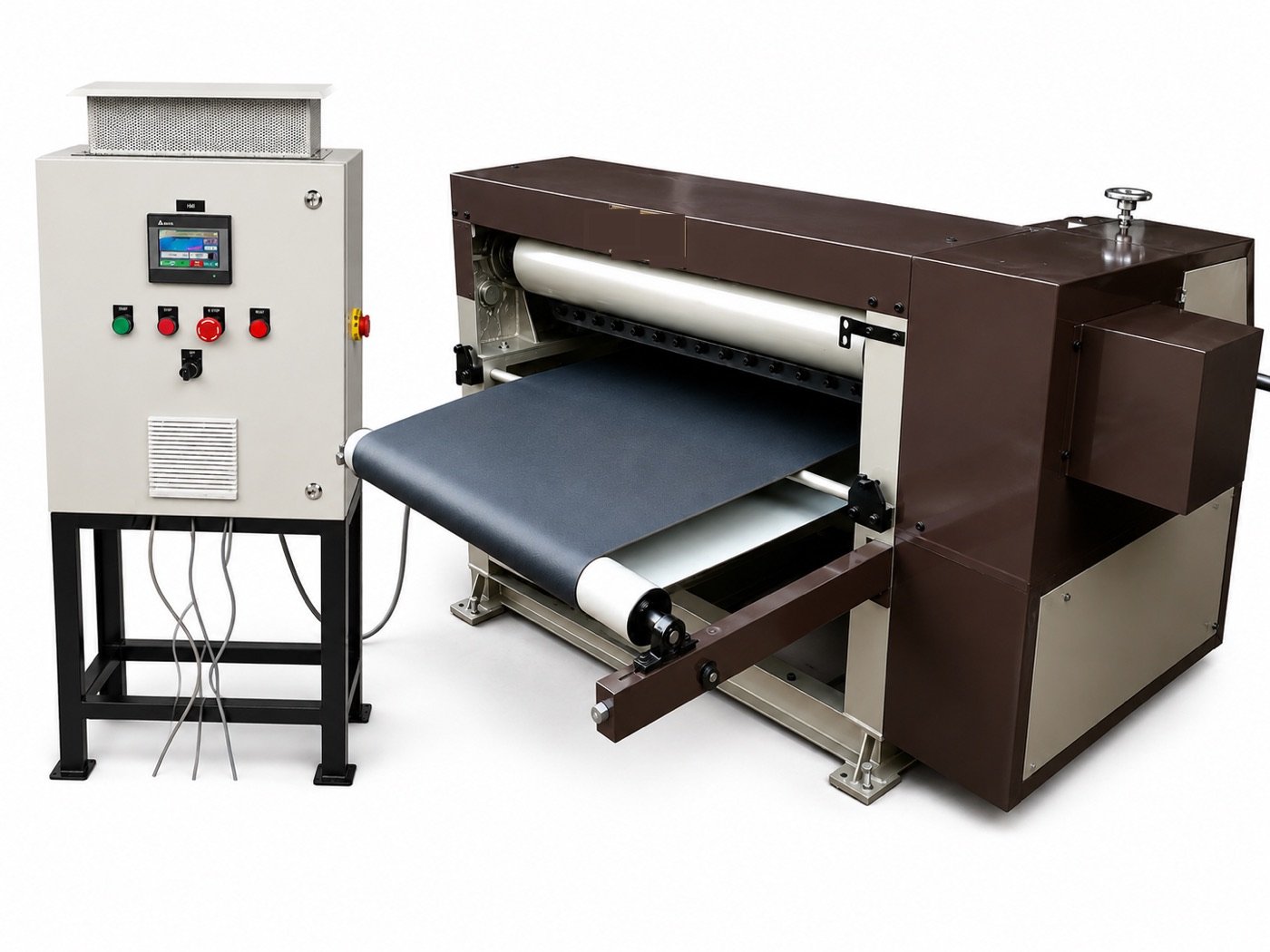

Reel To Sheet Cutting Machine with PLC Automated

View specifications
Features
  • High-speed reel-to-sheet cutting for paper and 2-ply corrugated board
  • PLC-controlled operation with digital display and touchscreen
  • Synchronized operation with overlap delivery and stacking station
  • High-rigidity gearbox and high-precision knife system
  • Low-noise operation with AC servo motor
Technical Specifications
SizeCutting RangeH.P.OutputSquarenessMaximum Pile Height
44"20"/100"570 m/min±0.5 mm500 mm
54"20"/100"770 m/min±0.5 mm500 mm
64"20"/100"770 m/min±0.5 mm500 mm
Request Quote →

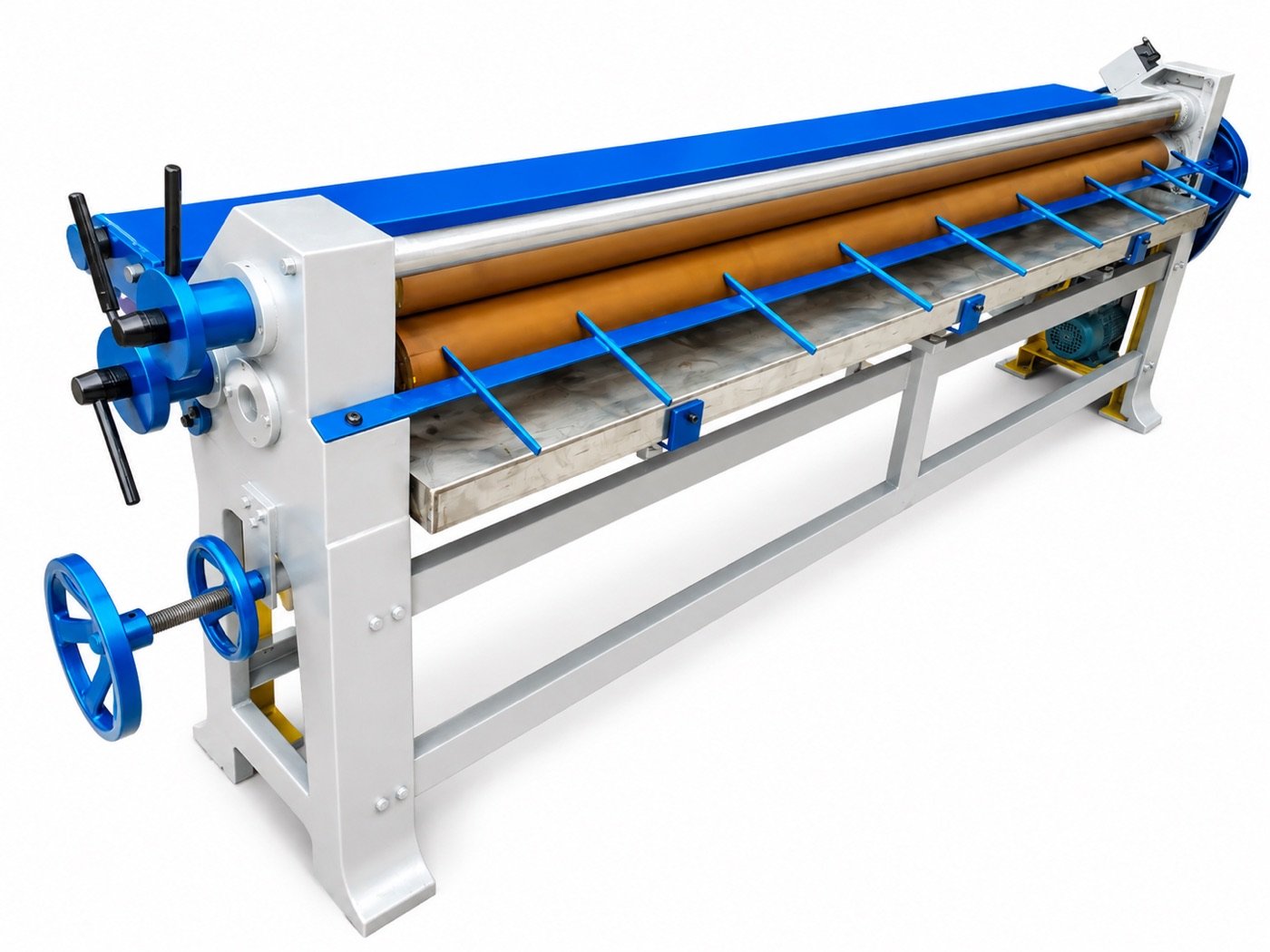

Sheet Pasting Machine

View specifications
Features
  • Suitable for corrugated sheets
  • Strong construction for continuous operation
  • Smooth-finished rolls for uniform pasting
  • Worm-gear gum-tray system
Technical Specifications
SizeSheet FeedMotor
65"15"/60"0.5 H.P.
75"15"/70"0.5 H.P.
85"15"/80"0.5 H.P.
95"15"/80"0.5 H.P.
105"15"/80"1 H.P.
Request Quote →

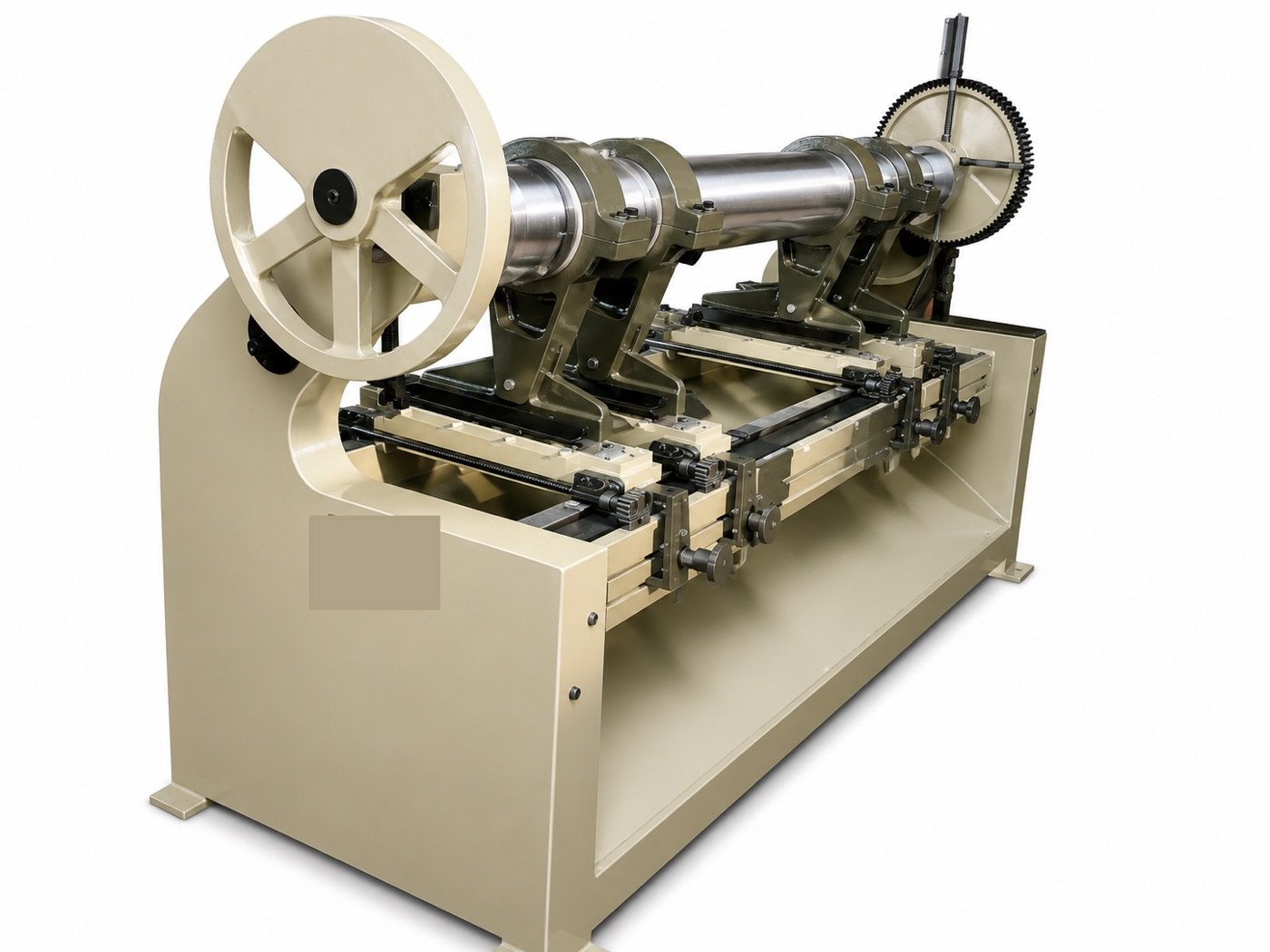

Eccentric Slotter

View specifications
Features
  • Three slotting heads and one corner head
  • Quick and accurate head adjustment
  • Side-cutter adjustment arrangement
Technical Specifications
SizeStrokes/minSlot DepthMinimum DistancePowerFloor Space
75"3018"5"3 H.P.8' × 4'
85"3018"5"3 H.P.9' × 4'
95"3018"7"5 H.P.10' × 4'
105"3018"7"5 H.P.11' × 4'
Request Quote →

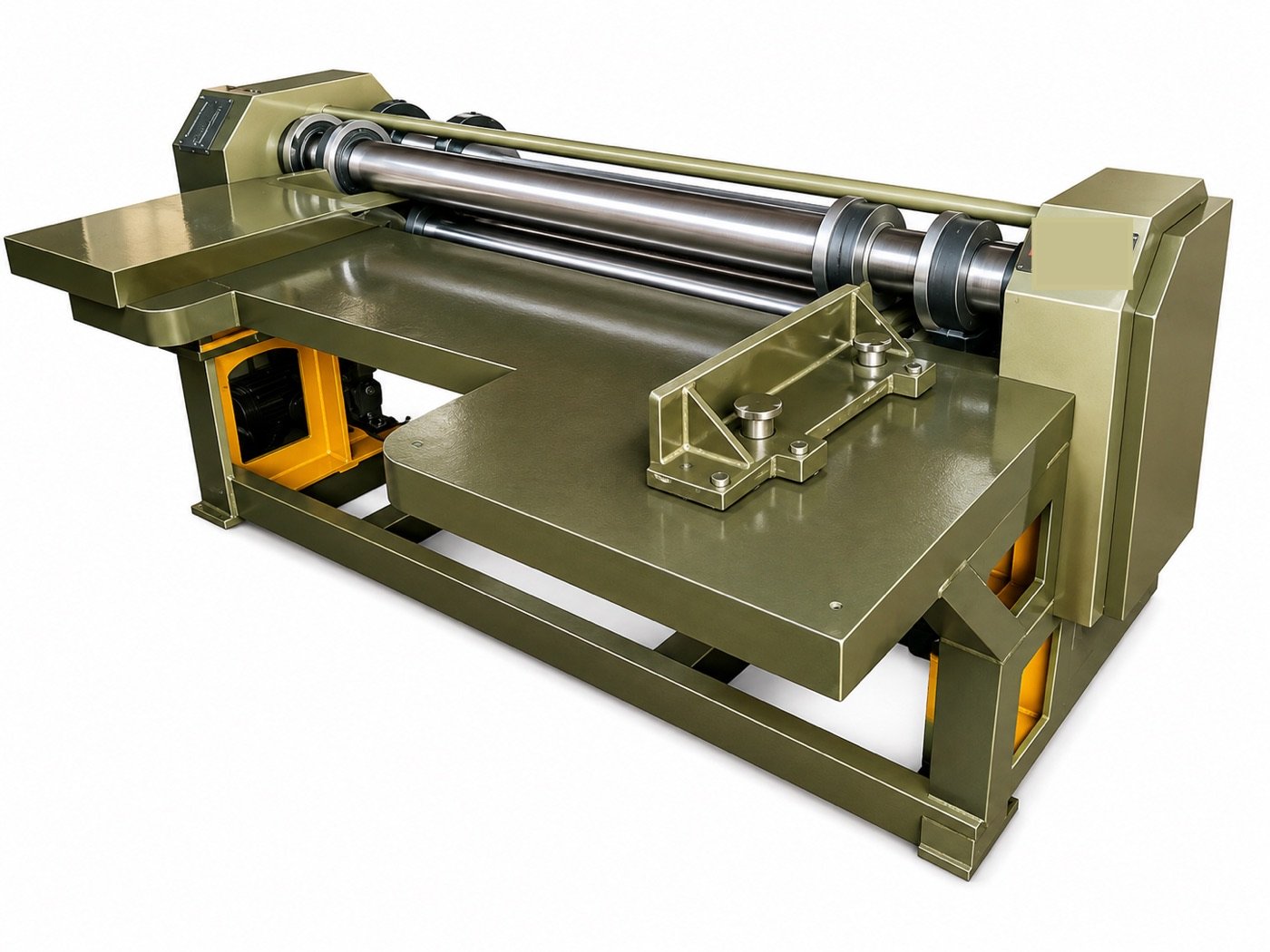

Four Bar Rotary Cutting Machine

View specifications
Features
  • Trimming and creasing with simultaneous cutting and creasing
  • Easy operation with adjustable creasing and cutting heads
  • Side gauges for board feeding
  • Accurate cutting and creasing
Technical Specifications
SizeOutputMinimum Die DistancePowerFloor Space
65"15" × 70"3"2 H.P.7' × 4'
75"15" × 80"3"2 H.P.8' × 4'
85"15" × 80"3"3 H.P.9' × 4'
95"15" × 80"3"3 H.P.10' × 4'
105"15" × 80"3"3 H.P.11' × 4'
Request Quote →

Die Punching & Creasing Machine

View Details →
View specifications
Features
  • Electromagnetic clutch-brake with instant stop
  • Dwell timing and operator safety device
  • Sheet counter and digital electronic counter
  • Piped oiling system with high-quality bearings and bronze bushes
  • Helical gears; automatic time delay 0–30 sec.
  • Smooth operation with chromium-finished components
  • Worm-gear feed system
Available Sizes

20" × 26" · 22" × 32" · 25" × 37" · 29" × 40" · 33" × 43" · 41" × 53" · 41" × 55" · 42" × 62" · 48" × 68" · 52" × 72"

Request Quote →

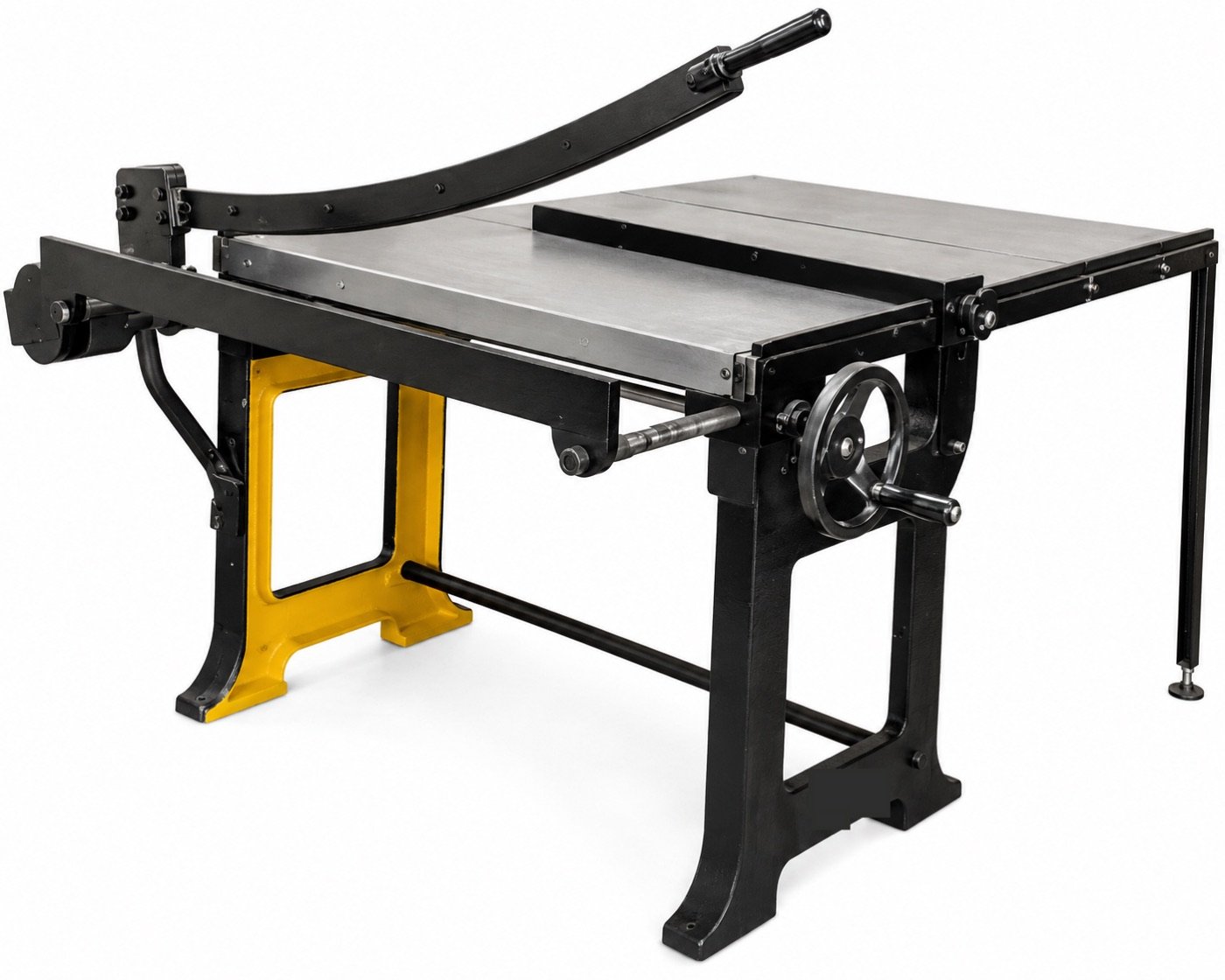

Board Cutter Machine

View specifications
Features
  • Cuts cardboard, corrugated board and paper
  • Balanced cutting knife with free cutting at minimum pressure
  • Gauges for accurate cutting
Available Sizes

42" × 52" · 52" × 62" · 62" × 72" · Larger sizes available

Request Quote →

Sheet Pressing Machine

View specifications
Features
  • Strong frame construction with two-screw pressing arrangement
  • Spring-regulated pressure for even application
  • Designed for durable and even boards
Technical Specifications
SizeHeightPressing HeightPowerFloor Space
65" × 75"84"54"2 H.P.6' × 7'
65" × 105"84"54"2 H.P.6' × 9'
Request Quote →

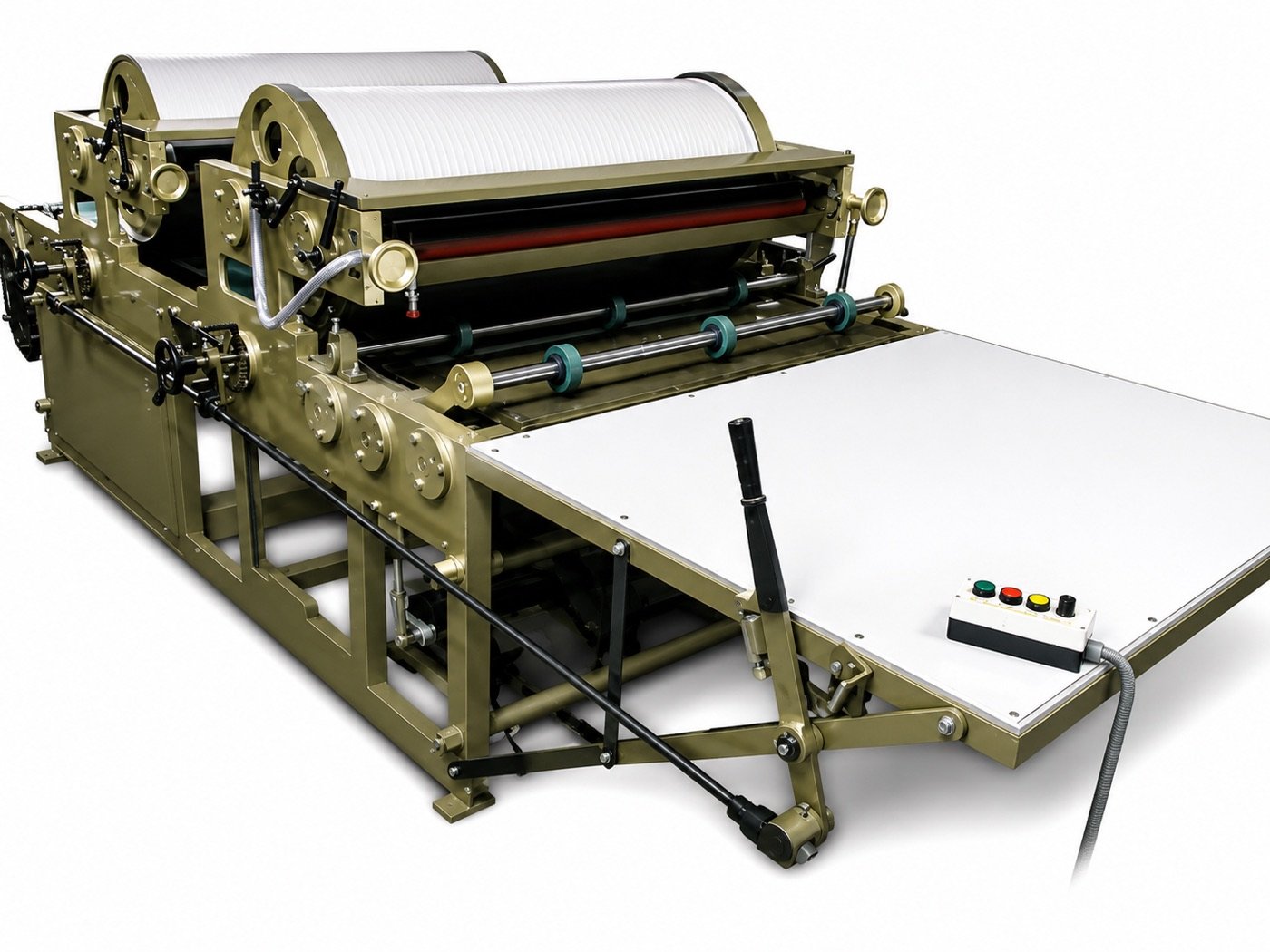

Flexo Board Printing Machine

View specifications
Features
  • Designed for corrugated-box printing
  • Variable-speed electrical drive with conveyor system
Technical Parameters
Size52" × 72"
Motor2 H.P.
Output1000 per hour
Request Quote →

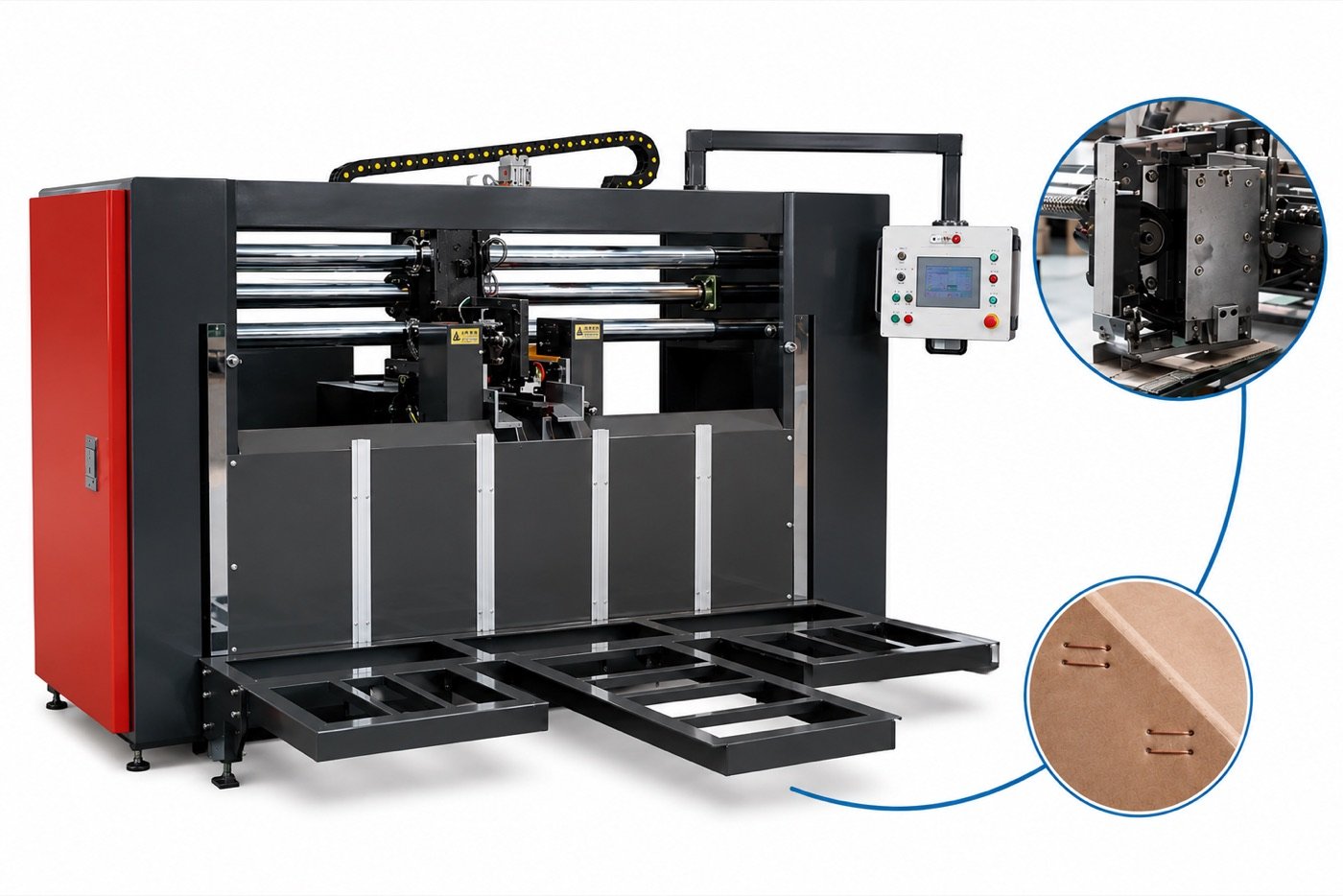

Box Stitching Machine

View specifications
Features
  • Cardboard and corrugated-board stitching
  • Round or flat wire with adjustable stitching head
  • Available arm lengths from 20" to 60"
Technical Specifications
SizeStitches/minPower
20"2500.5 H.P.
30"2500.5 H.P.
36"2500.5 H.P.
42"2500.5 H.P.
48"2500.5 H.P.
52"2501 H.P.
60"2501 H.P.
Request Quote →

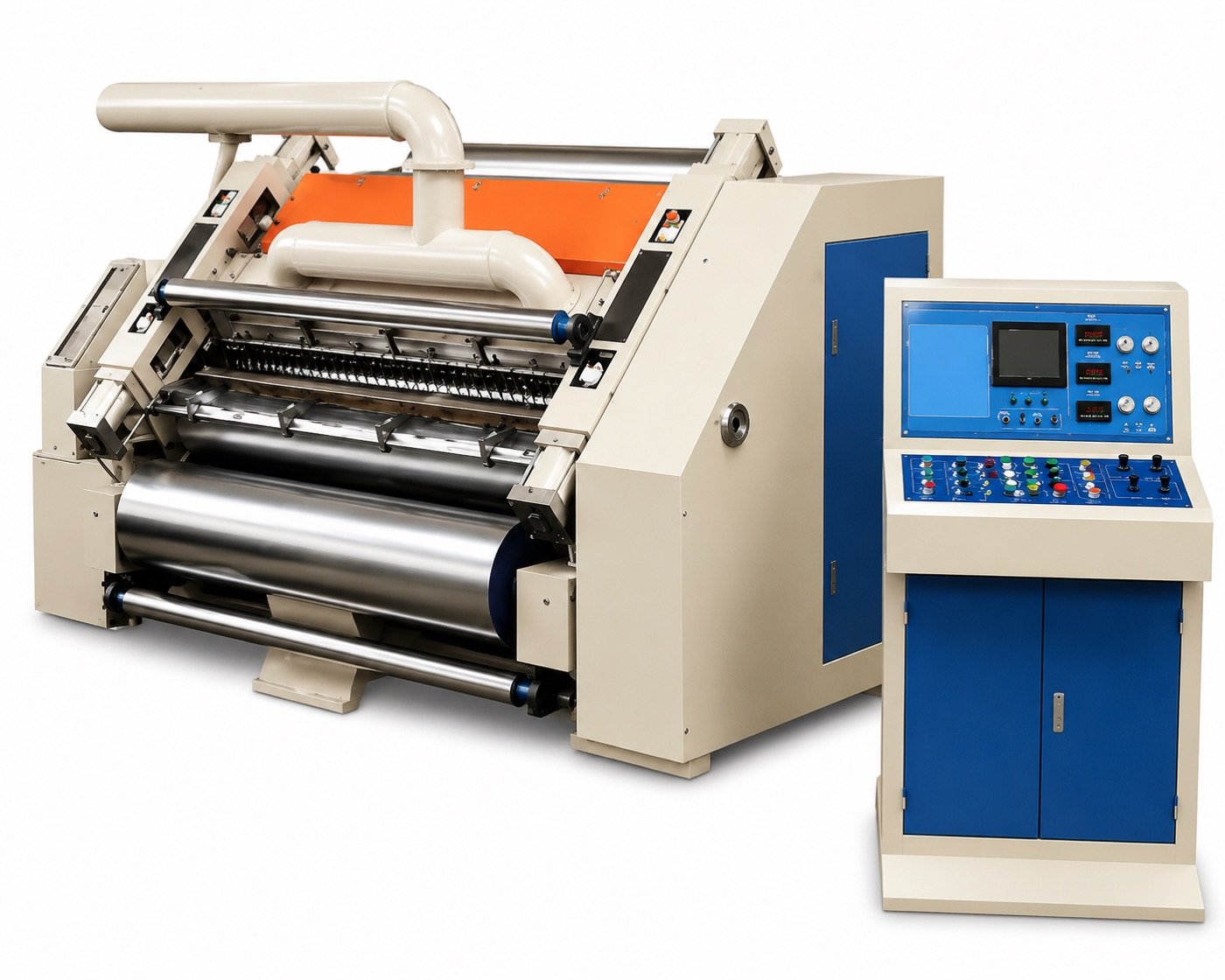

Corrugation Machine Fingerless (Chinese Model)

View specifications
Features
  • Designed speed: 120–200 m/min; width 1400–1800 mm
  • Roll diameters: 280, 320, 360 and 380 mm
  • Separate upper and lower rolls with guideway replacement system
  • Vacuum suction with blast-volume controller
  • Gimbal transmission and individual drive box
  • Special-grease gear lubrication; pneumatic roll lifting/lowering
  • Digital readout; manual glue-application adjustment
Request Quote →

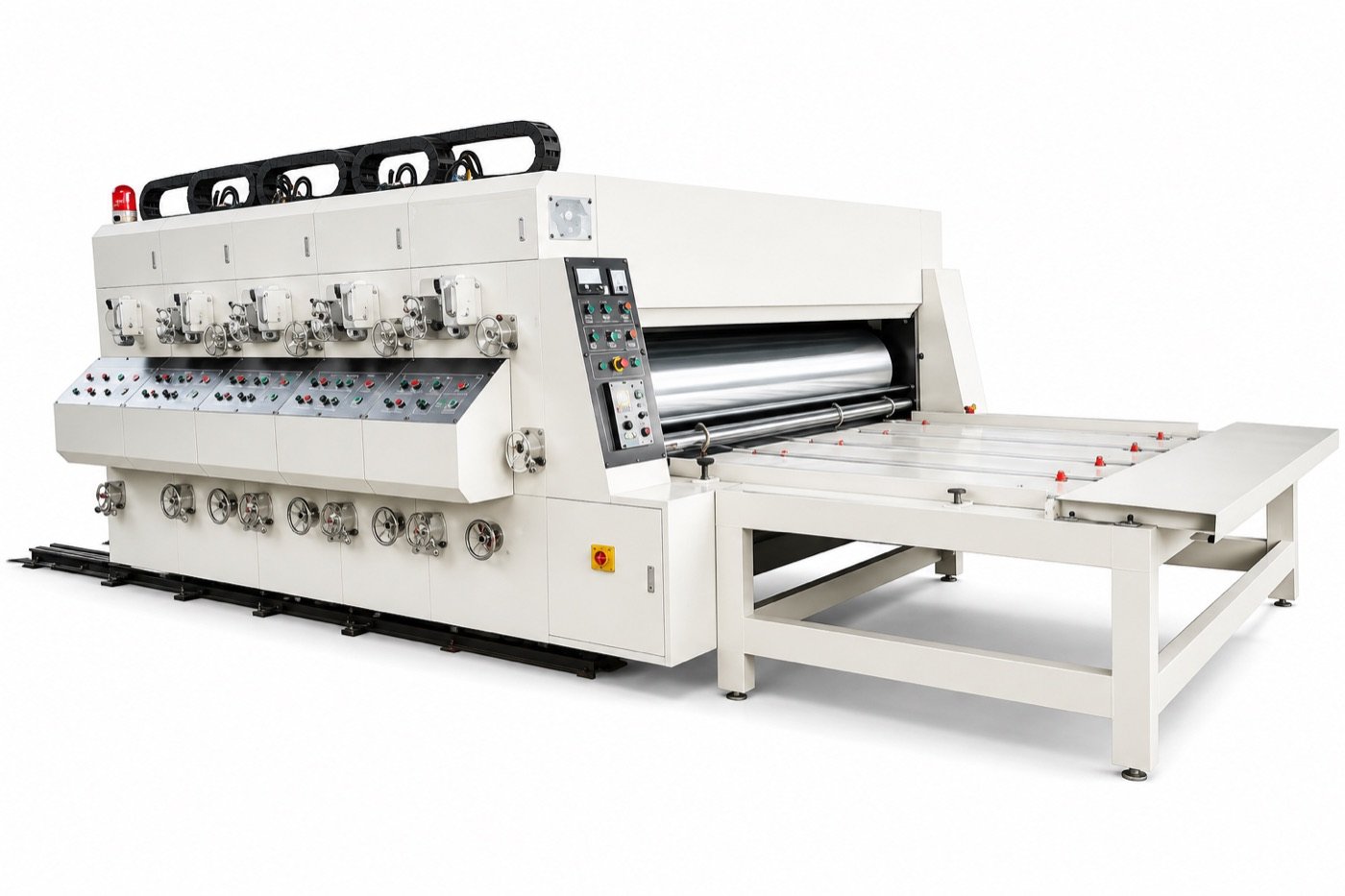

Single Colour Printer Slotter Machine

View specifications
Features
  • 2-, 3-, 4- and 5-colour configurations available
  • Printing, slotting, creasing and die cutting in combined process
  • Large screw and bevel-gear transmission for increased gear strength
  • Cross-sliding paper-feed drive with 360° phase adjustment
  • Suitable for corrugated-board carton production
  • Models: 3350-1600 / 1800 / 2000 / 2200
Request Quote →

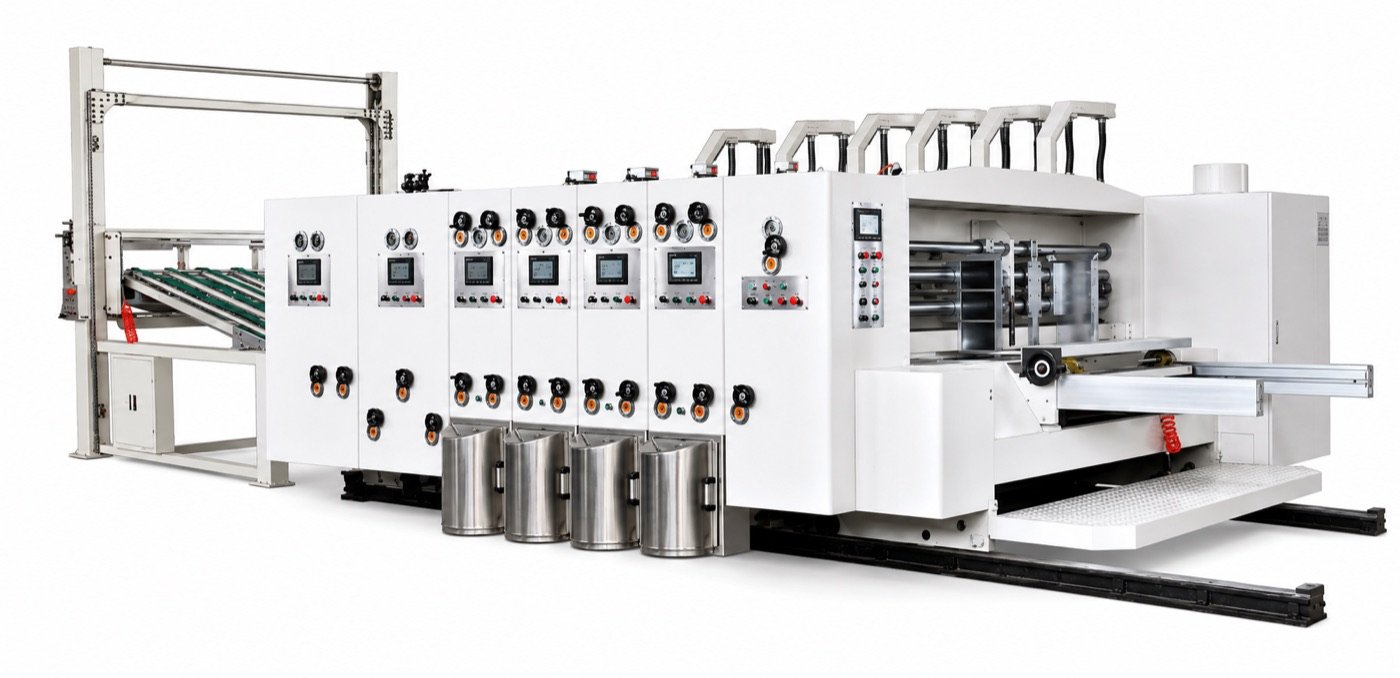

Double Colour / Printer Slotter (Multicolour) Machine

View specifications
Features
  • Seven-color flexographic printing with slotting and rotary die cutting
  • High-speed production with hard-chromium-plated drive rollers
  • High-quality alloy-steel gears with keyed main drive connection
  • Automatic lubricating oil balance
  • Computer touchscreen with feeder control and memory functions
  • Steel or ceramic anilox roller options
  • Optional stacker, feeder and bundler
Request Quote →

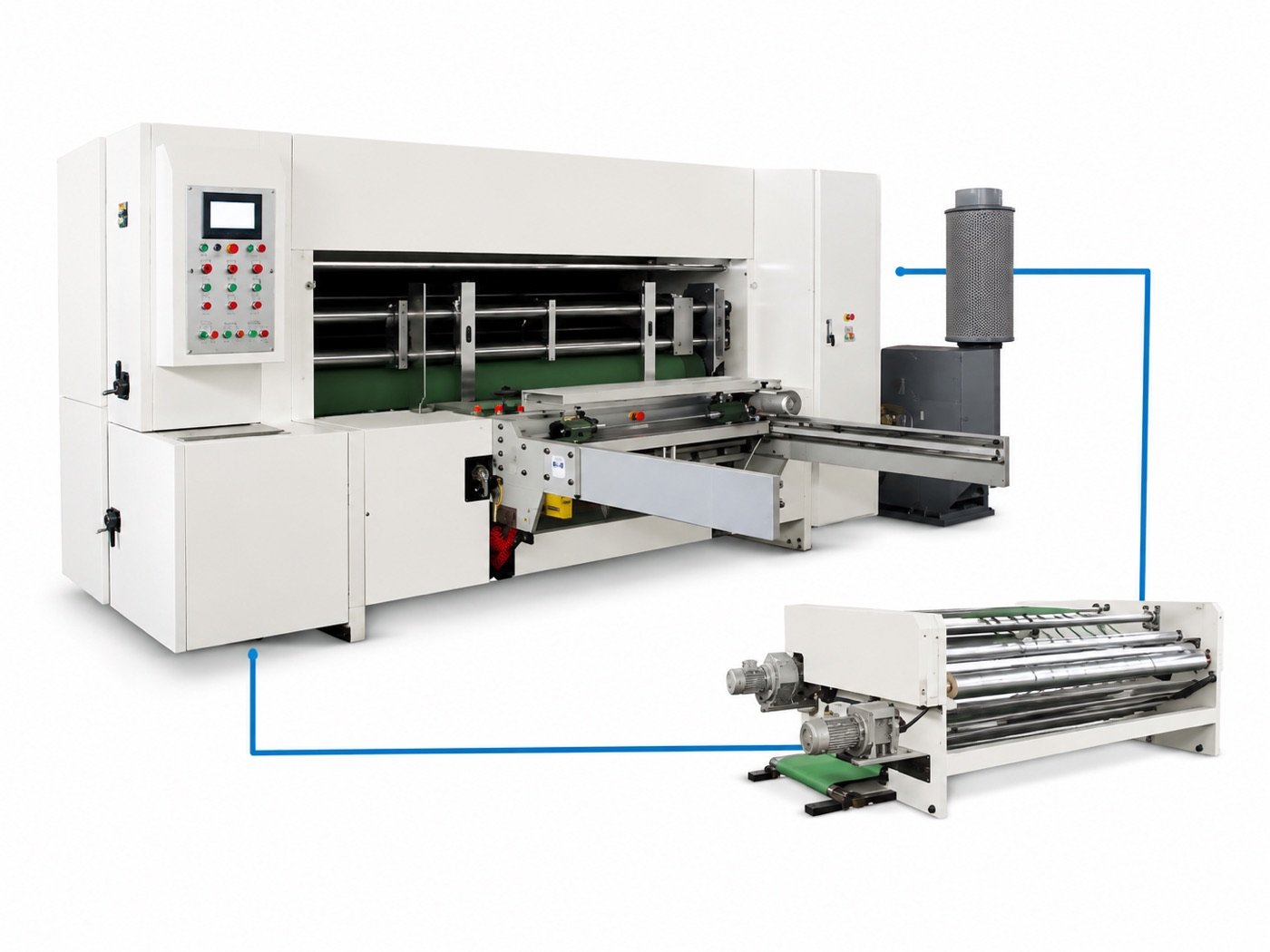

Rotary Die Cutting Machine

View specifications
Features
  • Computer/electronic phase control with 360° phase adjustment
  • Electronically adjustable die-cutting scraper
  • Vacuum paper-feed mechanism
  • Lightweight aluminium back-kick system
  • Electronic left/right and back-baffle adjustment
  • Consecutive or skip feeding with infrared electronic counter
  • Brush dust removal; chain or automatic board feeding available
Request Quote →

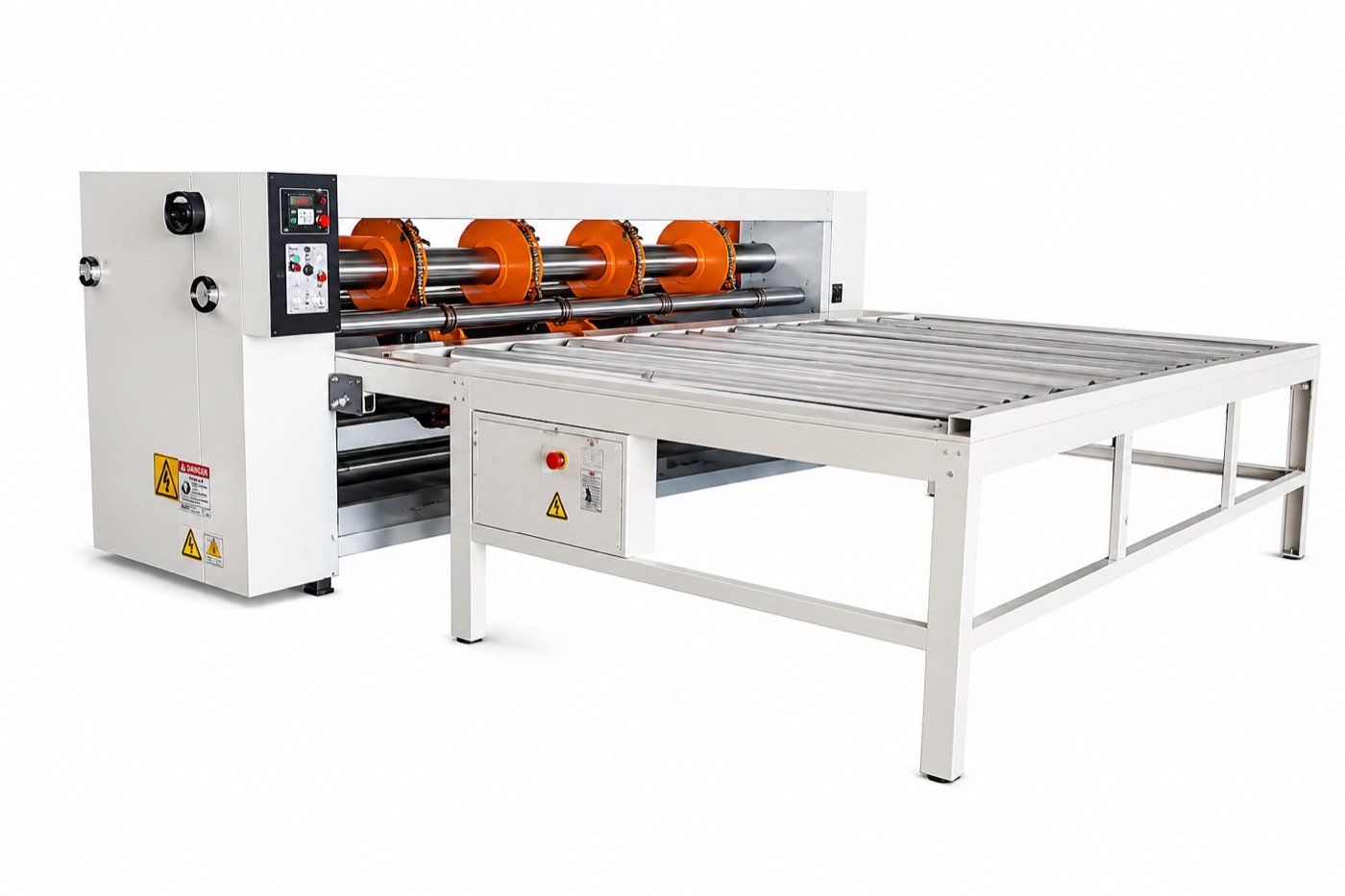

Thin Blade Rotary / Slitting Machine

View specifications
Features
  • Thin-blade cutting with automatic and manual grinding
  • Sharpness maintenance
  • Separate cutting and creasing
  • Reduced tearing during pressing
Technical Specifications
SpecificationModel 2000Model 2500
Paperboard width2000 mm2500 mm
Max. speed141 m/min141 m/min
Paper partitioning44
Minimum separate cutting width200 mm200 mm
Minimum creasing width200 mm200 mm
Knife diameter260 mm260 mm
Knife thickness1 mm1 mm
Power4 kW4 kW
Weight3000 kg3500 kg
Request Quote →

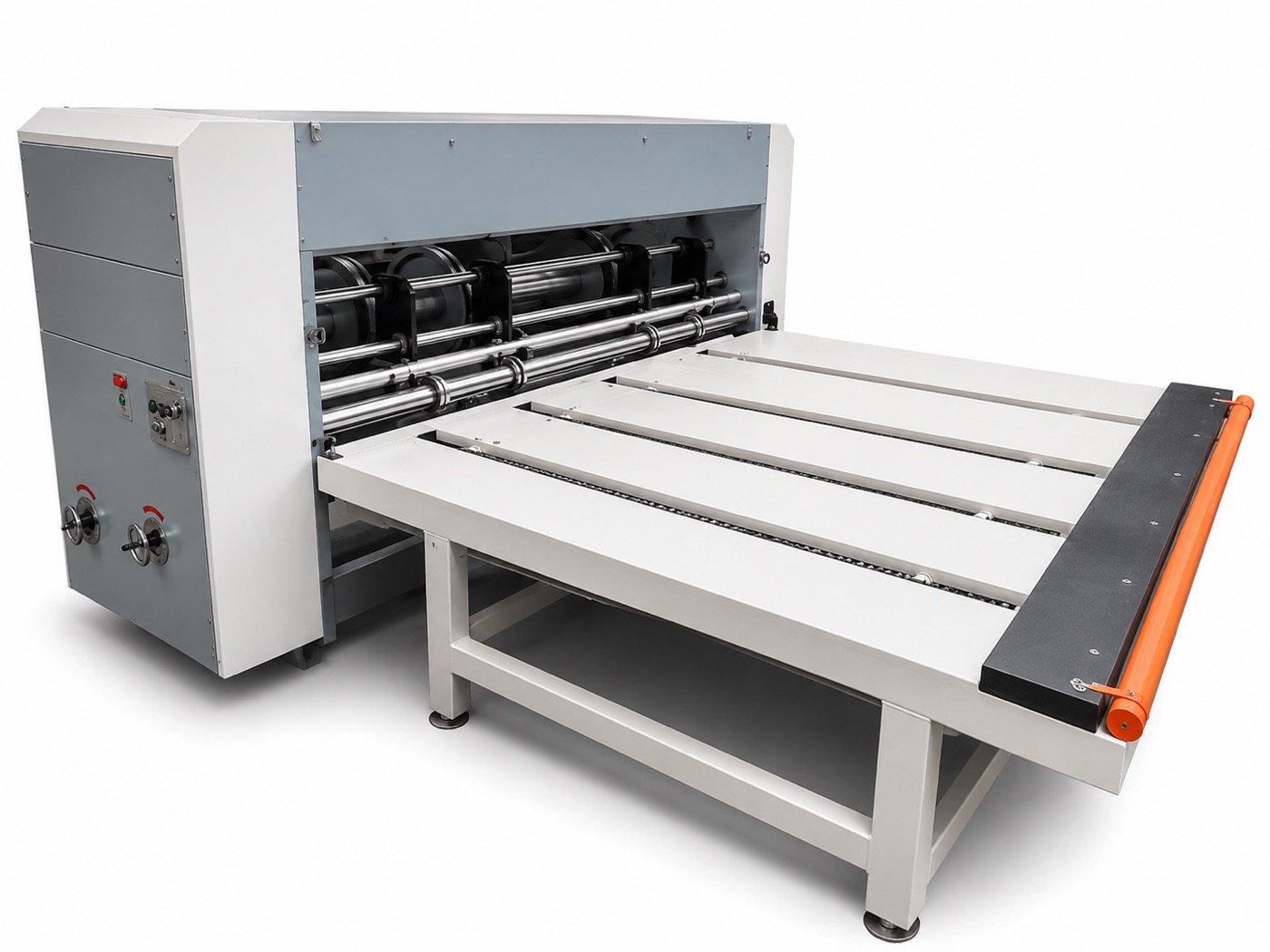

Combined Rotary Slotter (RS-4) Machine

View specifications
Features
  • Partition processing, corner cutting, slotting, creasing and edge cutting
  • Corrugated-board processing
Technical Specifications
ModelPaper Feeding AreaMax. Slot DepthSlot WidthMin. Slot DistanceSpeed
20001470 × 1950 mm350 mm7.0 mm150 mm0–70 sheets/min
22001470 × 2150 mm350 mm7.0 mm150 mm0–70 sheets/min
25001470 × 2450 mm350 mm7.0 mm150 mm0–70 sheets/min
Request Quote →

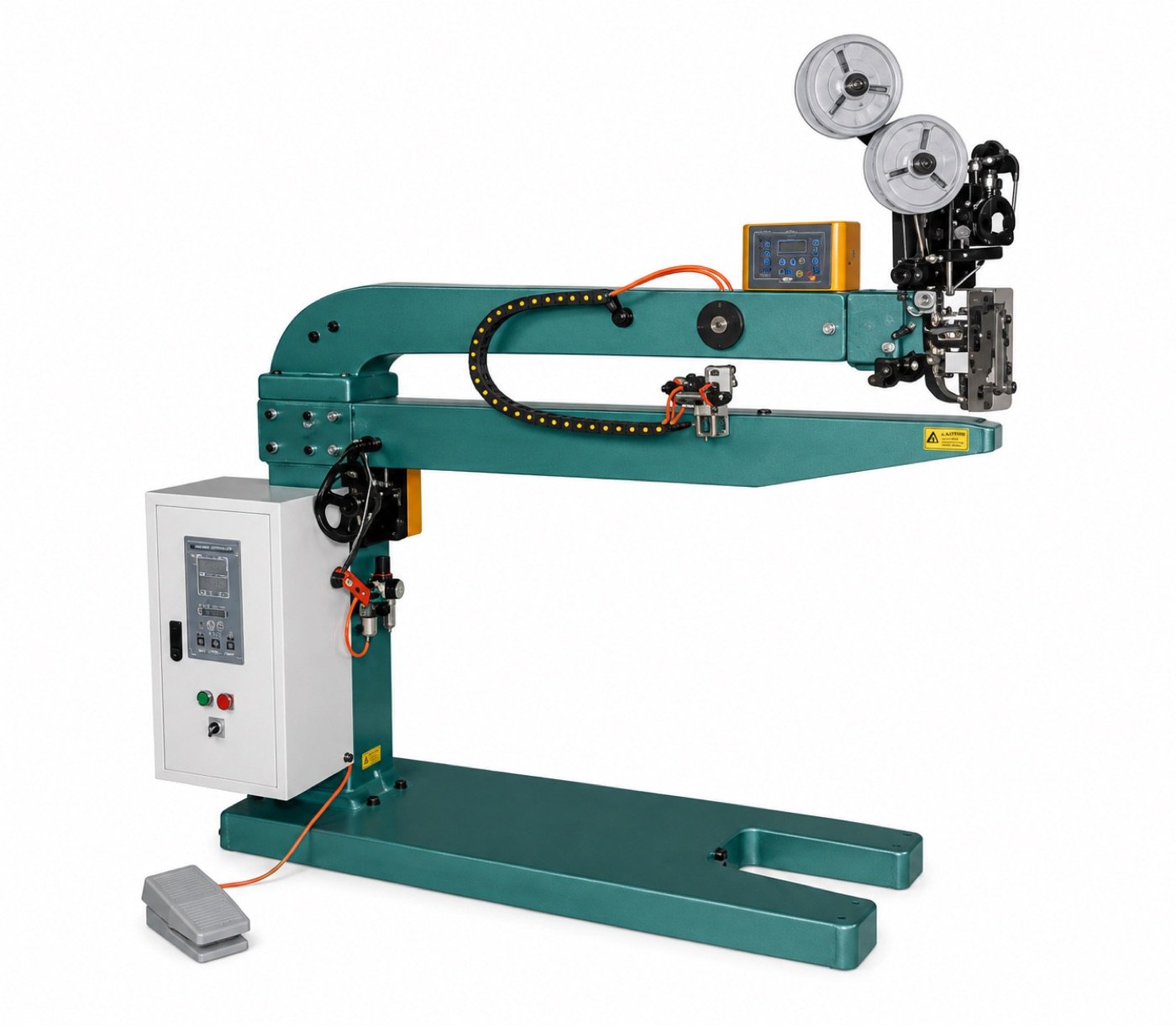

Auto Stitcher

View specifications
Features
  • Stitching speed: 400 stitches/min
  • Stitch count: 3–99; stitch pitch: 35–60 mm
  • Maximum product size: 1500 × 1300 mm
  • Single, double and tie stitching
  • Accurate counting with automatic batch delivery
  • PLC/electrical control; suitable for 3-ply and 5-ply corrugated board
Request Quote →

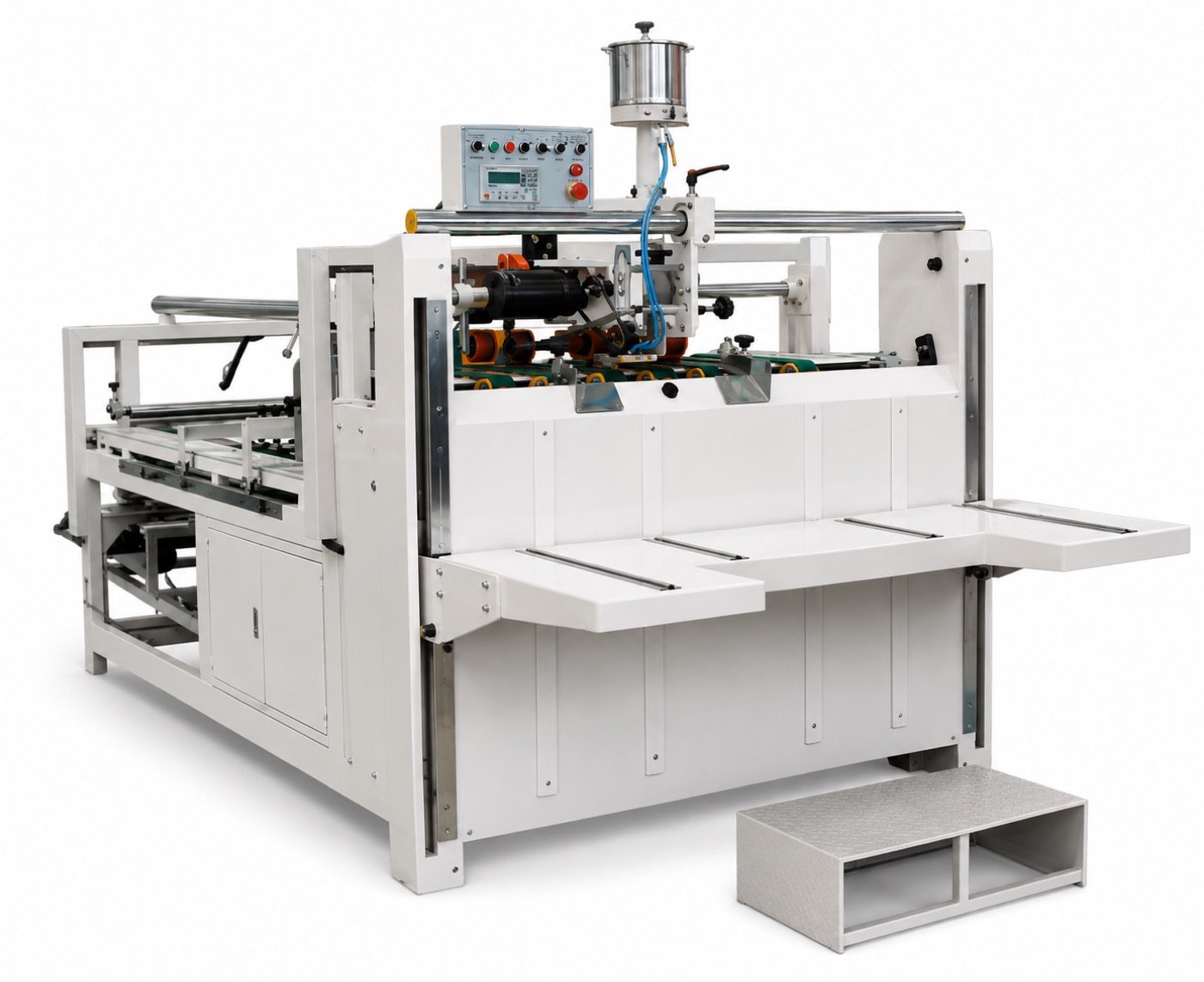

Semi Automatic Folder Glueing Machine

View specifications
Features
  • Main-form section with two small conveyors
  • Up/down work table; forepart feeding and squeeze sections
  • Middle transportation and press section
  • Side-carton delivery with electrical control system
Technical Parameters
Model2800
Maximum size (L+W)×22800 mm
Minimum size (L+W)×2340 mm
Maximum size (W+H)×21515 mm
Minimum size (W+H)×2260 mm
Feeder height1000 mm
Motor power4 kW
Machine speed60 m/min
Machine dimensions5100 × 1860 × 1600 mm
Request Quote →

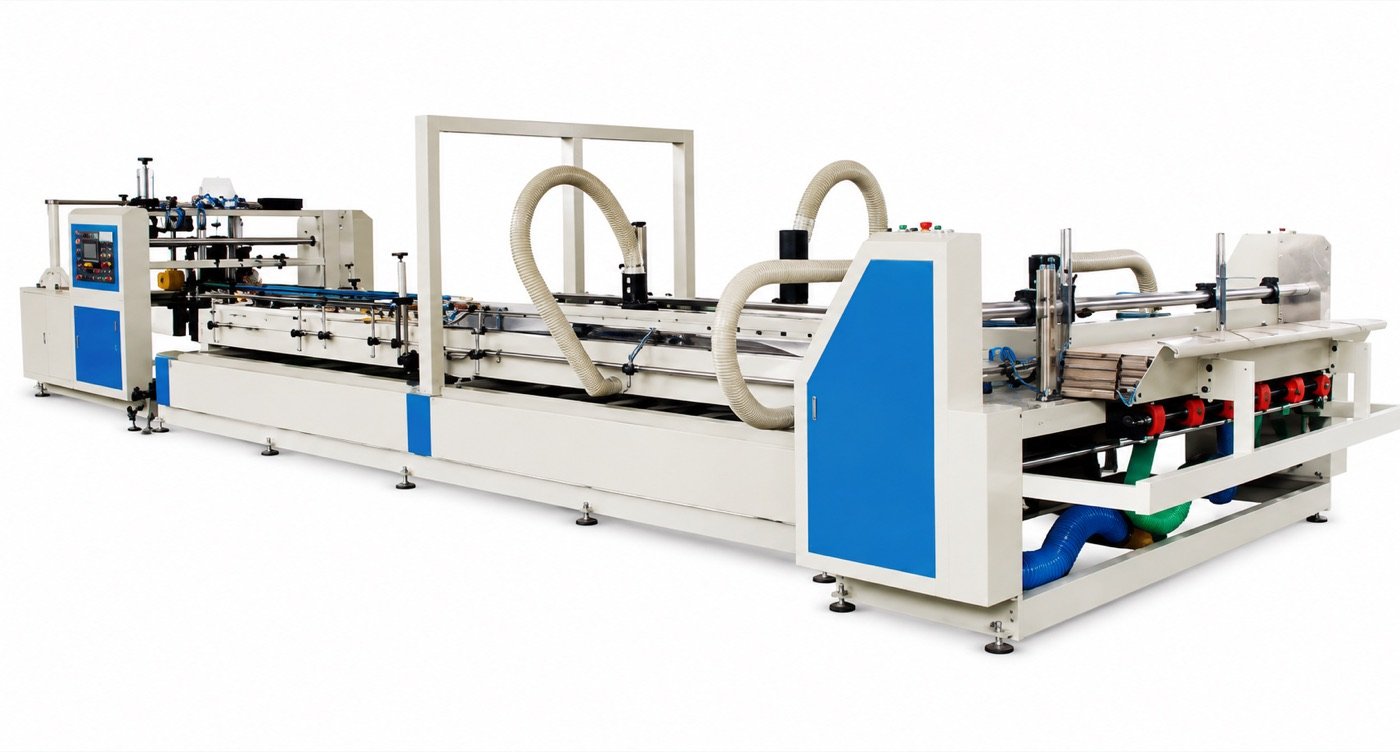

Fully Automatic Folder Glueing Machine

View specifications
Features
  • Main-form section with two small conveyors
  • Up/down work table; forepart feeding and squeeze sections
  • Middle transportation and press section
  • Side-carton delivery with electrical control system
Technical Parameters
Model2800
Maximum size (L+W)×22800 mm
Minimum size (L+W)×2340 mm
Maximum size (W+H)×21515 mm
Minimum size (W+H)×2260 mm
Feeder height1000 mm
Motor power4 kW
Machine speed60 m/min
Machine dimensions5100 × 1860 × 1600 mm
Request Quote →

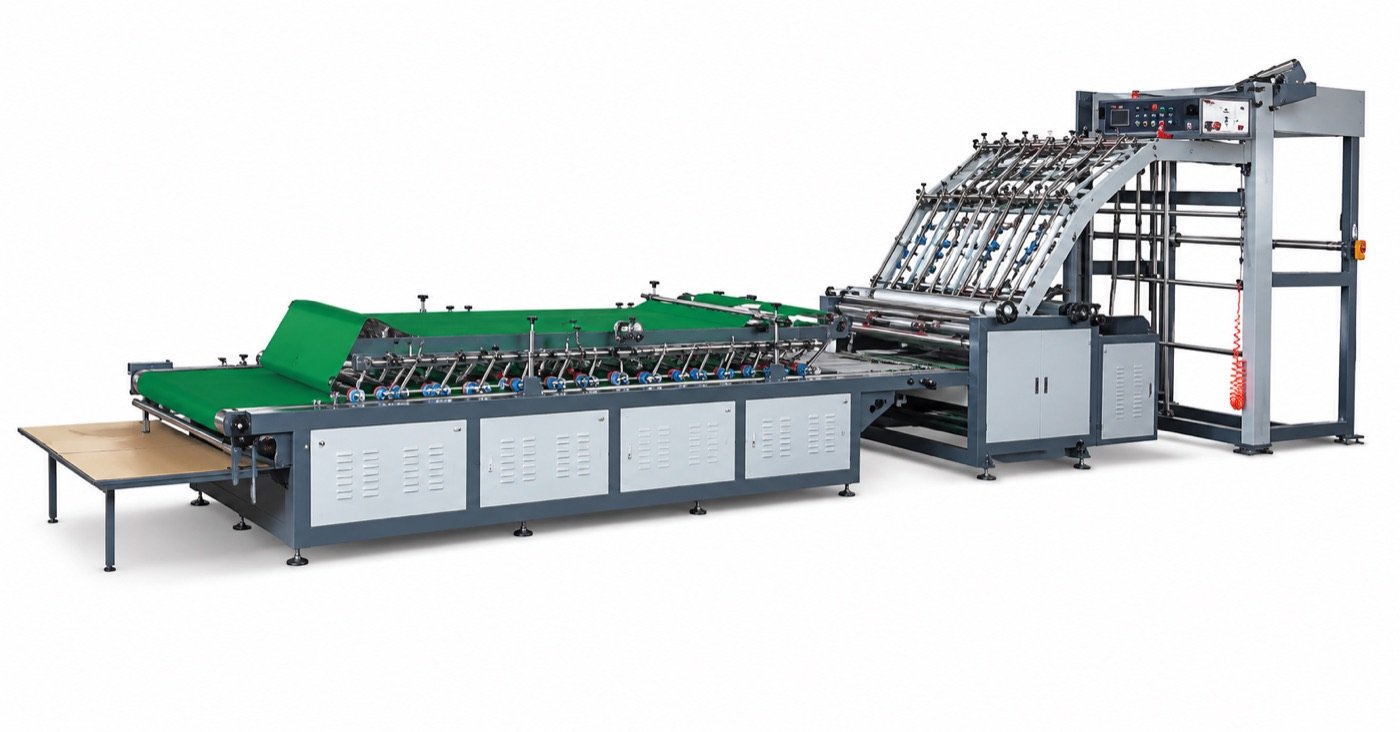

Semi Automatic Flute Laminating Machine

View specifications
Features
  • High-speed continuous operation with PLC and vacuum-suction system
  • Back-registration system with automatic parameter adjustment
  • Large range of paper sizes; accurate lamination
  • Suitable for paper and corrugated board
  • Models: 1300 / 1400 / 1500 / 1600
Technical Parameters
Maximum sizesapprox. 1300 × 1100 mm to 1600 × 1400 mm
Minimum sizeapprox. 360 × 360 mm
Economic speed0–80 pcs/min
Precision±1 mm
Powerapprox. 7 kW
Weightapprox. 3–3.5 T
Request Quote →

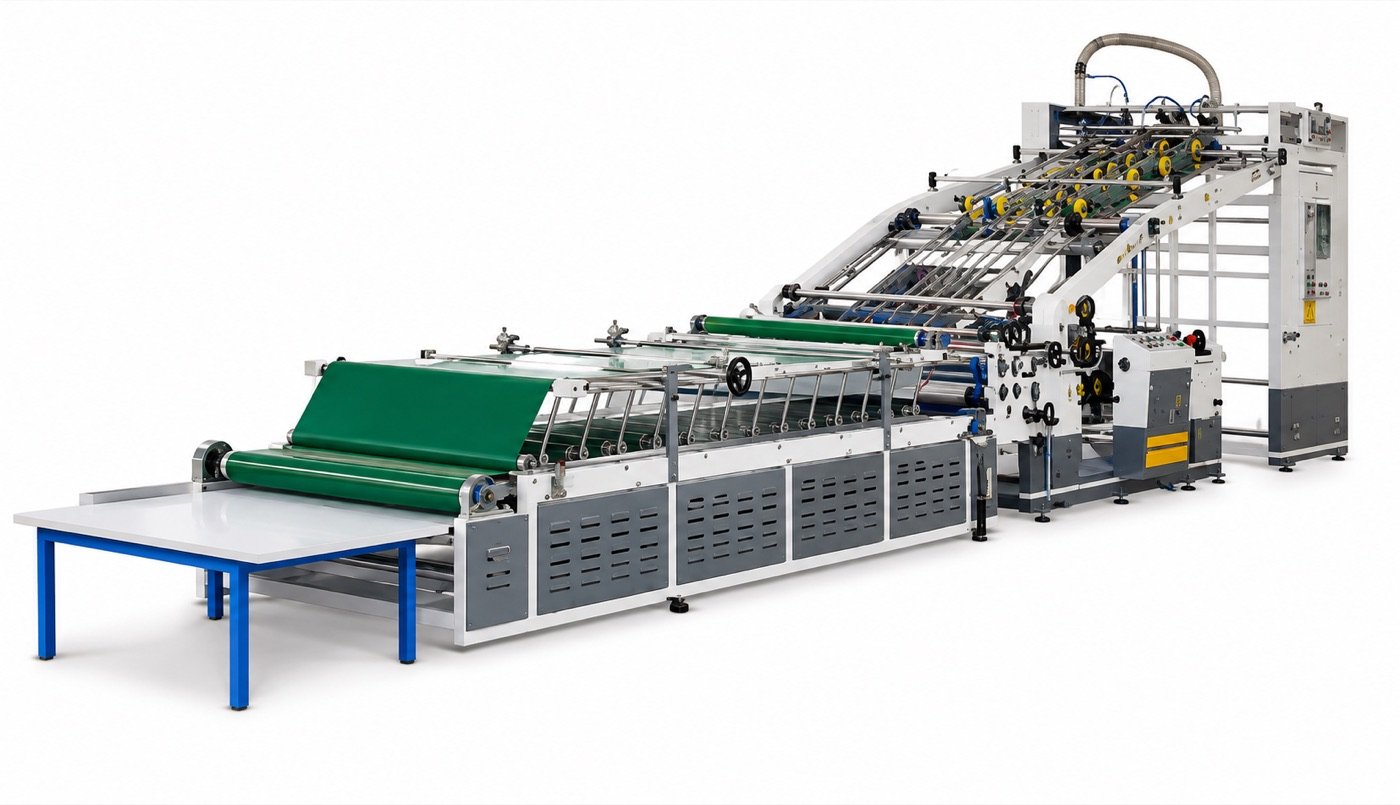

Fully Automatic Flute Laminating Machine

View specifications
Features
  • Automatic top and bottom feeding
  • High-speed operation with high laminating precision
  • Suitable for 200–600 GSM top paper
  • Suitable for A/B/C/D/E/F flutes and 2-ply, 3-ply and 5-ply boards
Technical Specifications
SpecificationModel 1Model 2Model 3
Maximum size1300 × 1100 mm1400 × 1100 mm1600 × 1400 mm
Minimum size350 × 350 mm350 × 350 mm450 × 450 mm
Precision≤ ±1.5 mm≤ ±1.5 mm≤ ±1.5 mm
Speed6000 sheets/hr6000 sheets/hr6000 sheets/hr
Power12 kW12 kW13 kW
Length12.5 m12.5 m15 m
Weight6.8 T7.2 T8.0 T
Request Quote →

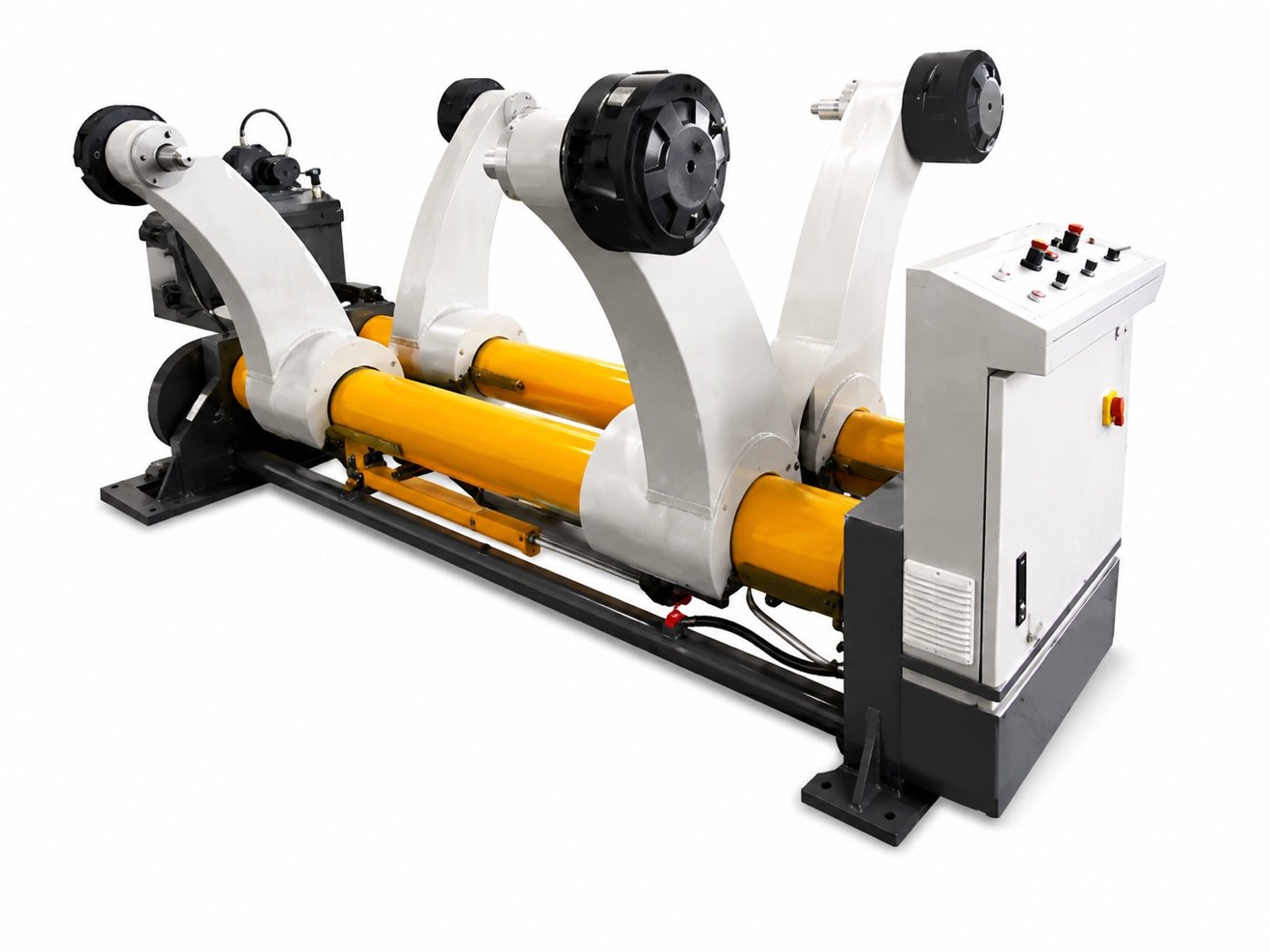

Mill Roll Stand (Electrical & Hydraulic)

View specifications
Features
  • Maximum roll diameter: 1500 mm
  • Hydraulic lifting/lowering and clamping/releasing (hydraulic model)
  • Motorized lifting/clamping on electrical shaftless model
  • Right/left movement with pneumatic web-tension / brake control
  • Width range 1400–1800 mm on electrical shaftless model
  • Taper centre; optional expansion/end-chuck arrangement
Request Quote →

3Ply, 5Ply, 7Ply Plant

View specifications
Features
  • Designed for large-volume automatic corrugated paperboard production
  • Automatic centralized control with high-quality reliable operation
  • Heating technology designed to reduce energy consumption
  • Options for different corrugated-board ply configurations
  • Hydraulic and automatic feeding systems
  • Automatic gluing and sheet delivery
  • Computer-controlled cutting and slitting
Main Components
  • Hydraulic Mill Roll Stand
  • RG-900 Triple Preheating Cylinder
  • SF-320C Adsorb Single Facer
  • ZDF Bridge
  • GM-C Heavy Gluing Machine
  • SM-C Double Facer Machine
  • NC Computer Thin Blade Slitter Scorer
  • NC-120 Computer Helical Cross Cutter
  • DMT-120 Paper Sheet Delivery & Stacker
  • ZJZ Automatic Making-Gluer System
  • ZQ Steam System
  • Slitter & Scorer
  • Double Facer Baker
  • Gluing Machine
  • Conveyor Bridge
  • Inner Suction Single Facer
  • Preheating Cylinder
Technical Parameters
Product5-ply 150–1800 corrugated cardboard production line
Design speed150 m/min
Working speed130 m/min
Width1800 mm
Total line lengthapprox. 40–55 m
Total power200 kW
Plant sizeapprox. 75 × 11 × 5 m
Machine sizeapprox. 70 × 4.9 × 4.2 m
Paper width1800 mm
Precision±1 mm
Personnel8–11
Component Quantities
Hydraulic Mill Roll Stand5 sets
RG-900 Triple Preheating Cylinder4 sets
SF-320C Adsorb Single Facer2 sets
ZDF Bridge1 set
RG-S900 Triple Preheating Cylinder1 set
GM-C Heavy Gluing Machine1 set
SM-C Double Facer Machine1 set
NC Computer Thin Blade Slitter Scorer1 set
NC-120 Computer Helical Cross Cutter1 set
DMT-120 Paper Sheet Delivery & Stacker1 set
ZJZ Automatic Making-Gluer System1 set
ZQ Steam System1 set
Request Quote →

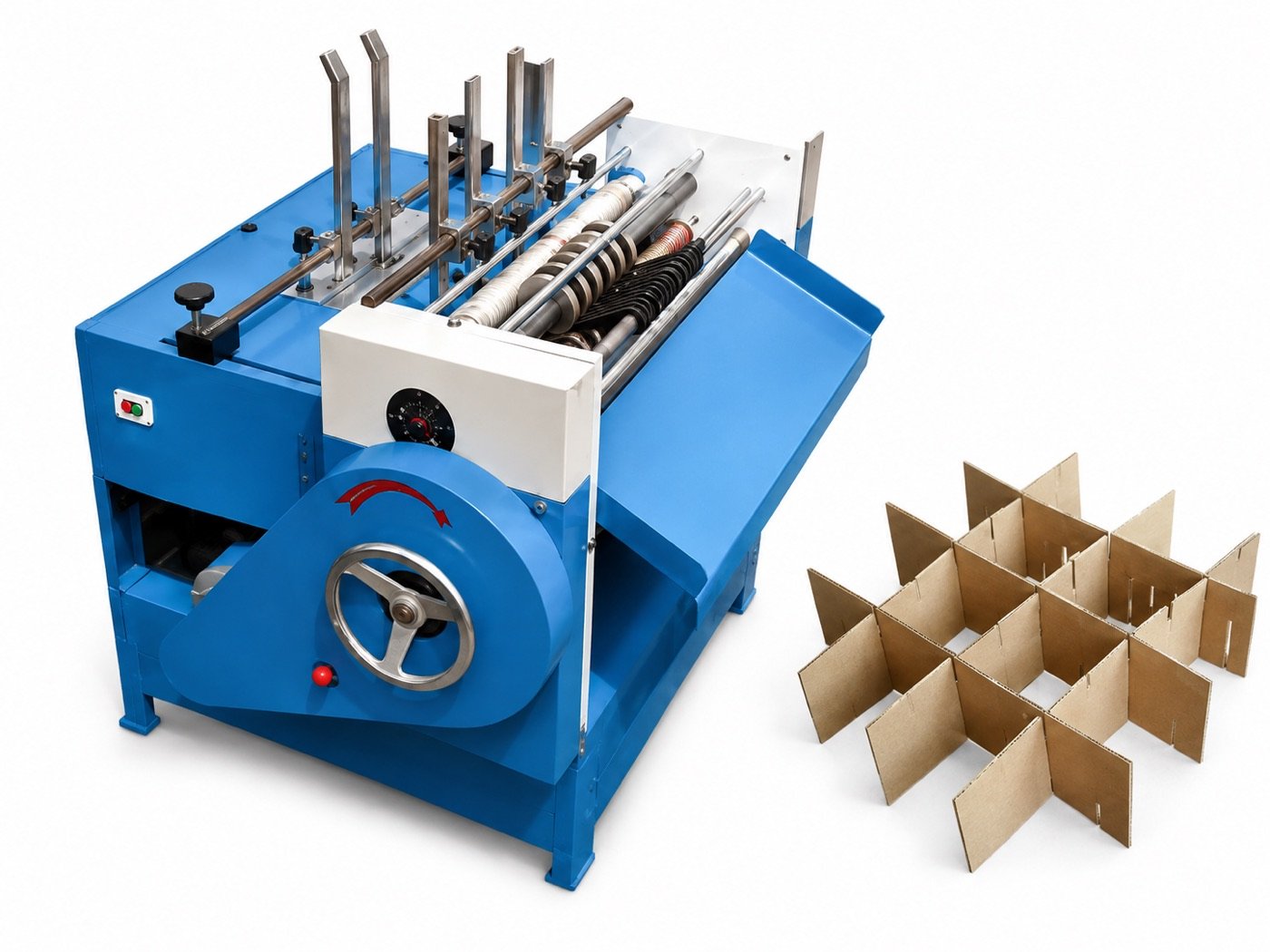

Partition Slotter Machine

View specifications
Available Sizes

36" · 42"

Request Quote →

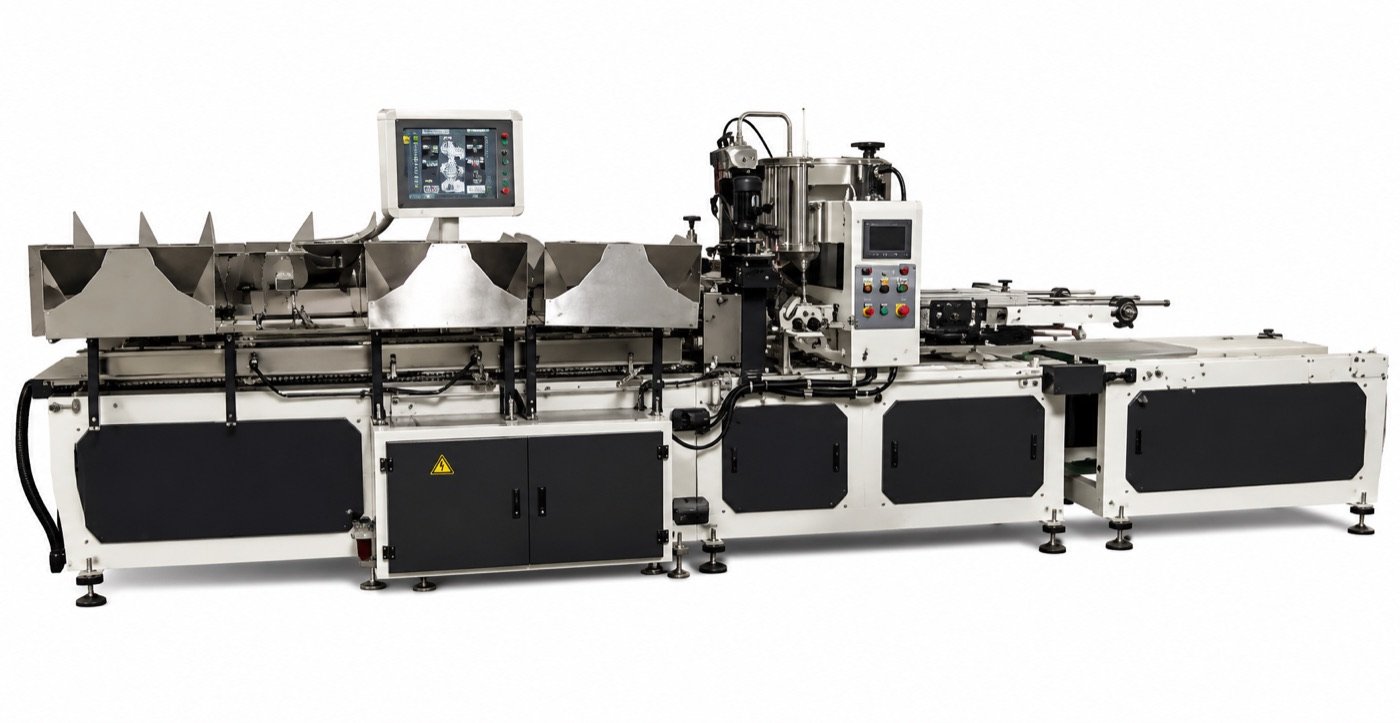

Automatic Partition Filling Machine

View specifications
Features
  • Lengthwise and horizontal sheet insertion
  • Automatic insertion of clapboard/block components
  • Single- and double-position configurations
  • Fault detection with automatic stop on paper jam
  • Designed speed: 40–60 pcs/min
  • Air pressure: 0.6–1.0 MPa; Power: 380 V, 50 Hz, three-phase
Technical Parameters
Lengthways sheet length120–450 mm
Clapboard height80–300 mm
Lengthways clapboard distance20–250 mm
Carton thickness1.5–8 mm
Technical Specifications
ModelDimensionTotal Power
CGJ450-2S5 × 1.8 × 1.8 m8 kW
CGJ450-3S6.2 × 2.0 × 1.8 m8 kW
CGJ450-2D5 × 1.8 × 1.9 m9 kW
CGJ450-3D6.2 × 2.0 × 1.9 m9 kW
Request Quote →

Packaging Machine Manufacturer in Amritsar, Punjab

Advanced Printing & Packaging Machineries designs and builds packaging machinery for corrugated box plants — from high-speed double profile corrugation and reel-to-sheet cutters to printer slotters, folder-gluers, flute laminators, and 3 / 5 / 7 ply plants. Every line is engineered for heavy-duty Indian and export duty cycles.

Based in Manawala, Amritsar, we support custom bed sizes, flute profiles, and turnkey plant layouts. Explore related printing machines and genuine accessories, or request a quote on WhatsApp +91 6284 974 477.

Why buy packaging machines from us?

  • 41+ years of in-house manufacturing since 1983
  • Export experience across South Asia, Middle East & Africa
  • Factory inspection & spare-parts support from Amritsar
